High-performance electric mountain bike, integrated into an ultra-lightweight, full carbon frame. Powered by the revolutionary Avinox motor. Ready to tackle any trail you dare to ride.
Frame: Carbon

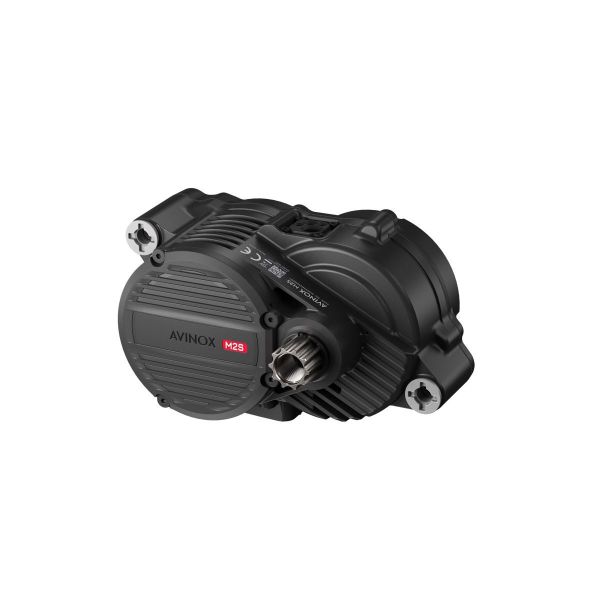

Motor: Avinox M2S+, 250/1500W, 150Nm
Display: Avinox BC100
Battery: Avinox FP700, Premium Cell, 700 Wh, 36 V
Charger: Avinox 4A fast charger
Fork: RockShox Psylo Gold RC, air, 160 mm
Shock: RockShox Deluxe, air, 205x60 mm
Drivetrain: Shimano Deore XT 11-speed
Shifter: Shimano Deore XT 11-speed
Crankset: Shimano CUES 11-50T 11-speed
Chain: Shimano 11-speed
Front Brake: Shimano Deore, BR-M6 series, 4-piston 203mm hydraulic disc brake
Rear Brake: Shimano Deore, BR-M6 series, 4-piston 203mm, hydraulic disc brake
Tires: Continental Kryptotal
Rims: Raymon VR33/DE207
Handlebars: Raymon
Stem: Raymon
Saddle: Raymon Atmos 135
Seatpost: Raymon dropper post
Pedals: Flat pedals
Maximum rider weight: 130kg
Wheel size: 29/27.5
Warranty: 2-year manufacturer's warranty
Size guide:
Size S = 1.62m to 1.73m
Size M = 1.69m to 1.79m
Size L = 1.78m to 1.88m
Size XL = 1.85m to 1.95m
Raymon is a German brand owned by the Puello family (founders of Haibike). Raymon is a well-known and respected brand for its excellent quality/price/performance ratio.
