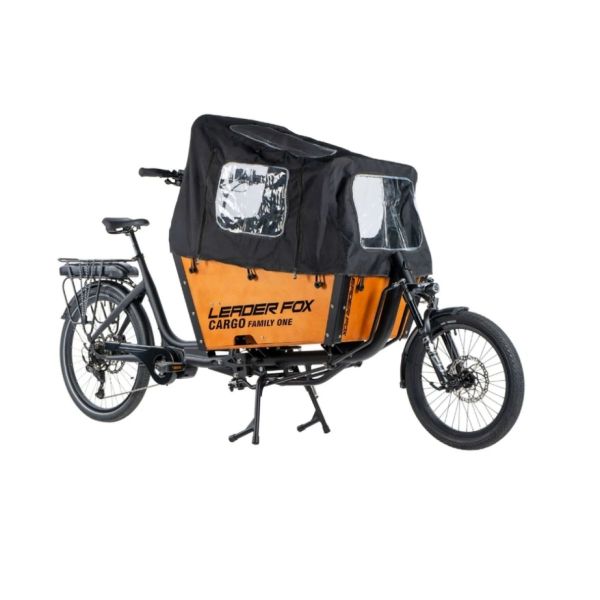

Leader Fox CARGO E-Bike Family One with aluminium frame, cargo basket with removable roof, front suspension fork, hydraulic disc brakes with 4-piston calipers (front disc 180mm, rear 203mm), parking brake and LED lighting.

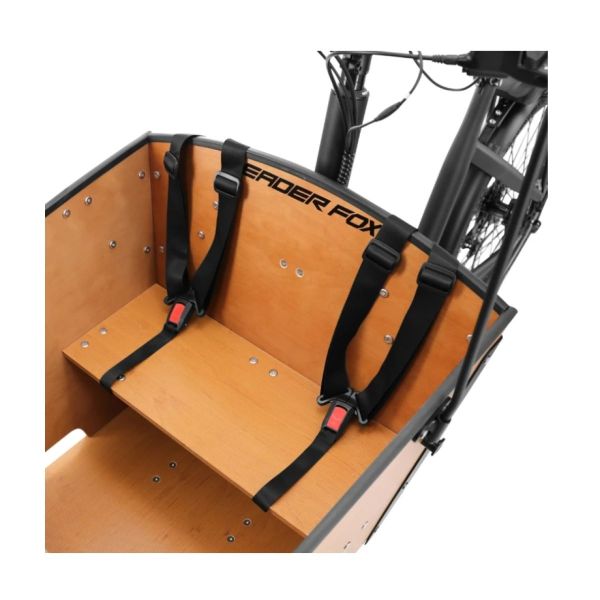

The cargo basket is equipped with safety straps. (Dimensions: 950 x 600 x 350 mm)
Side panel height: top 550 mm, bottom 450 mm
Base length (side): 950 mm
Base width (side): 560 mm

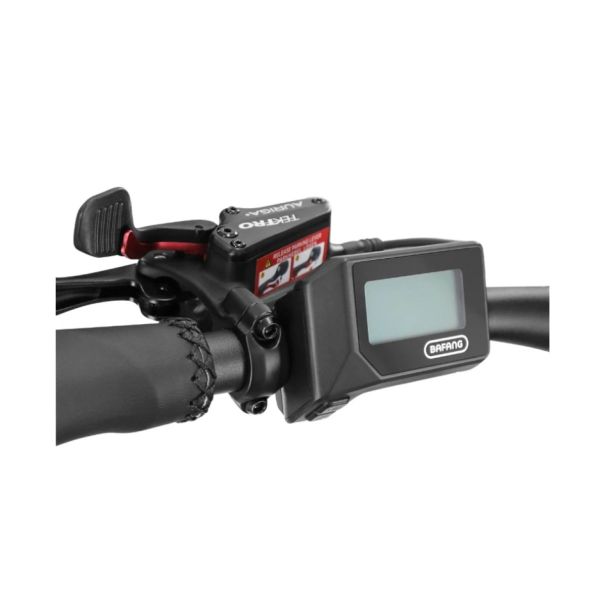

Controlling the entire system is intuitive and simple thanks to the LCD screen and the control button located on the handlebars. With 5 assistance modes, you'll feel safe and comfortable on your rides. If you need to steer the bike up a steep incline, you can use the WALK function to make it easier.
The LCD screen displays your current, maximum, and average speed, mileage, and battery charge level. You can also choose between day and night display backlight modes.

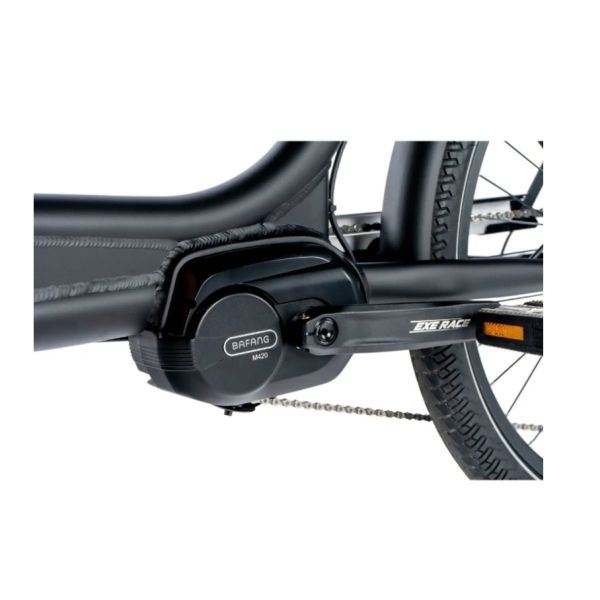

The Bafang M420 electric motor is distinguished by its very smooth and quiet operation with a torque of up to 80Nm.
It is equipped with a torque sensor that measures pedaling force. This means that the harder the cyclist pedals, the more assistance the motor provides.
With a fully charged battery, you can travel an average of 100 km on the Leader Fox CARGO E-BIKE Family ONE.
A fast charger with a charging current of 4A is included.
The range of an electric bike depends on multiple factors: the weight of the cyclist and the load, the physical condition of the cyclist, the style and nature of the ride, the technical condition of the bike, the temperature, the direction and strength of the wind, the elevation profile of the route, and the characteristics of the terrain (rough or hilly terrain, frequent starts, etc., which reduce the range).
The maximum load is 120 kg.
*Subject to component modification by the supplier
Central Position Engine
Engine Make/Model BAFANG M420
Motor Power/Torque 350W - 80Nm
Battery Position Rear
Battery Voltage/Current 36 V - 20 Ah - 720 Wh
Battery Theoretical Range 100 km
36V - 4Ah Charger - Charging Time 4-5h
Display/Ecran Bafang DP C221 Bluetooth
Aluminum frame
Uding H20 fork, 100 mm travel
Shimano Cues Drivetrain - Push Pull Shifter
Mono 38t crankset
Hydraulic Disc Brakes - Tektro Auriga
Adjustable stem
Half-raised hanger
20" and 26" wheels with quick-release skewers
